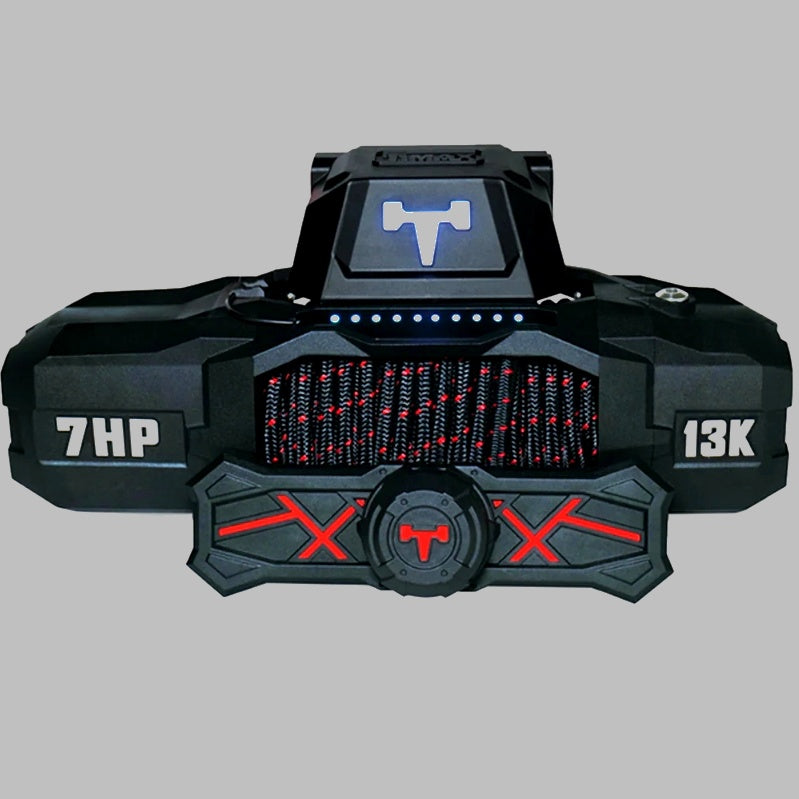

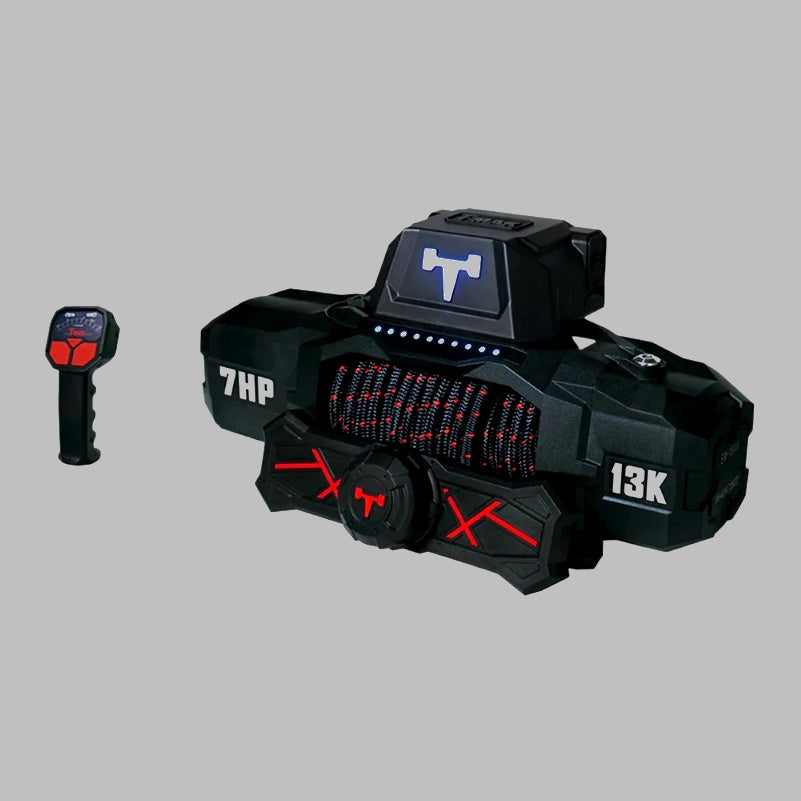

T-MAX Force View Titan Winch 13K | Heavy-Duty Recovery Winch

The T-MAX Force View Titan 13K Winch is built for extreme recovery performance, offering a massive 13,000 lbs pulling capacity for heavy SUVs, 4x4 trucks, and utility vehicles. Designed for tough terrains and professional use, it ensures reliable pulling power with a durable 7HP motor and robust 3-stage planetary gear system.
Its advanced braking system, smooth clutch, and user-friendly controls make every recovery operation safe and efficient. Suitable for off-roaders, tourers, towing applications, and worksite recovery where dependability is crucial.

Key Features
• 13,000 lbs rated line pull for heavy-duty recovery
• Strong 7HP series-wound motor for consistent performance
• 3-stage planetary gear train with 193:1 reduction ratio
• Synthetic rope with aluminum hawse fairlead (COMP Series)
• Automatic in-drum braking system for controlled operation
• Wired remote controller included (12-foot cable)
• Rugged construction for extreme off-road and worksite use
• Compatible with large 4x4s, trucks, and commercial vehicles

Specifications
• Rated Pull: 13,000 lbs (5897 kg)
• Motor: 7HP series-wound
• Controller: 12-foot wired/remote switch
• Gear Train: 3-stage planetary
• Gear Ratio: 193:1
• Clutch: Sliding ring gear
• Brake: Automatic in-the-drum
• Drum Size: Ø 2.5" (63.5 mm) × 9.6" (224 mm)
• Rope: Synthetic, 12.5 mm × 28 m
• Fairlead: Aluminum hawse (COMP Series)
• Battery Recommended: 650 CCA
• Battery Leads: 1.83 m
• Net Weight: 78.1 lbs (29.5 kg)
• Dimensions: 532 × 175 × 178 mm (L×W×H)
• Mounting Pattern: 254 × 114.3 mm

Why Choose It
Perfect for heavy recovery scenarios, offering unmatched power, durability, and professional-grade reliability for serious off-road and utility use.

Note
Installation by a trained technician is recommended for best performance and safety.
